Nine functions and features of Shanghai Suren SRT-20 plane labeling machine

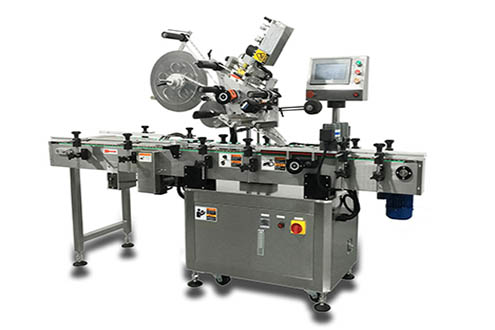

  Shanghai Suren SRT-20 plane labeling machine realizes labeling and filming on the upper plane or upper arc surface of the workpiece, such as books, boxes, plastic shell foods, beverages, etc. There are two methods, rolling and sucking methods, mainly Selection according to accuracy, efficiency and bubble requirements.

   SRT-20 plane labeling machine has advanced functions for automatically detecting object and label size and automatically adjusting parameters. It is mainly used for automatic printing of flat, flat and square packaging containers in daily chemical, pharmaceutical, food, beverage, stationery and hardware industries. Plane, side, top, and corner surface labels are used.

  Nine features of the SRT-20 plane labeler:

  1. Wide application range, which can meet the product flat labeling and self-adhesive film with product width of 25mm-400mm. The labeling mechanism can meet the uneven surface labeling;

  2, high-precision labeling, subdivided stepper motor or servo motor drive to send the standard, accurate delivery, standard belt bypass correction mechanism design, to ensure that the label does not move left and right during the traction process, eccentric technology applied to the traction mechanism, The traction label does not slide, ensuring accurate bidding;

  3, sturdy and durable, equipped with a three-bar adjustment mechanism, making full use of the stability of the triangle to create a rugged machine;

  4, high stability, Panasonic PLC, Panasonic touch screen, Panasonic needle-shaped electric eye, German labor test standard electric eye, composed of advanced electronic control system, support labeling machine equipment 7 × 24 hours of operation;

  5, simple adjustment, design adjustable seat, 6 degrees of freedom, easy to convert different products, save time;

  6, single machine production or water line production, production site layout is simple, flexible application;

  7, with no material and no labeling, no standard automatic calibration and automatic label detection, to prevent leakage and label waste, automatic photoelectric tracking, intelligent control;

  8, touch screen operation interface, full Chinese annotation and perfect fault prompt function, various parameters adjustment, fast and simple, easy to operate;
  9, powerful functions, with production counting function, production number setting prompt function, power saving function, parameter setting, protection function, easy for production management.
